Latte en bois GUBI-SLATS

contemporainécolabel FSCdurable

Overview
Ceilings have evolved from purely functional elements into architectural tools capable of defining the identity of a space. GUBI-SLATS (ond) is an undulating ceiling system made of solid bamboo slats combined with a specially designed substructure that adapts to curved geometries and specific waveforms. The system integrates architectural expression, technical performance and sustainability within a single construction solution.

The architecture of movement
GUBI-SLATS (ond) enables the creation of dynamic surfaces that transform spatial perception. Undulations are custom-designed per project and can adapt to different curvature radii, heights and configurations. The combination of slats with different dimensions, spacing and arrangements allows unique compositions that generate changing patterns of light and shadow along the user’s journey. The ceiling becomes a defining element of interior architecture rather than a neutral plane.

Engineering and installation
The formal complexity of an undulating ceiling is resolved through a curved metal structure manufactured to the project geometries. The system comprises galvanized steel tubes, omega bracing profiles and adjustable suspension elements. Bamboo slats are mechanically fixed to this structure using machined aluminium plates, ensuring precise installation, high dimensional stability and rigorous control of tolerances for long-term reliability.

Acoustic comfort
Beyond visual impact, undulating slatted ceilings contribute to acoustic conditioning: the variable geometry of the slats promotes sound diffusion and improves acoustic perception in large-volume environments.

Material, safety and sustainability
The system is manufactured using solid bamboo slats offering high bending strength, low dimensional expansion due to moisture absorption and excellent structural performance. Fire-retardant treatments can be incorporated to achieve reaction-to-fire classifications up to B-s1,d0 in accordance with EN 13501-1. FSC®-certified bamboo options are available to support sustainability objectives and environmental certifications such as LEED or BREEAM.

Representative project

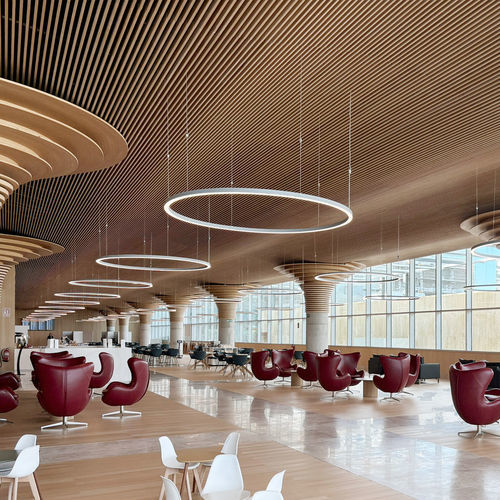

An example of large-scale application is the VIP Lounge at Palma de Mallorca Airport, where a continuous undulating acoustic ceiling was executed combining concave and convex areas, a precisely curved metal structure and slatted modules specifically designed to adapt to the final form. The installation demonstrates the system’s ability to deliver warmth, identity and acoustic comfort in high-occupancy public spaces.

Suitable applications

• Auditoriums
• Airport terminals and VIP lounges
• Corporate buildings
• Cultural spaces and other large-volume interiors

caractéristiques / spécifications techniques

• Denomination commerciale: GUBI-SLATS (ond)
• Matériau des lames: bamboo massif / bambou laminé
• Structure porteuse: structure métallique courbée (tubes galvanisés, profils omega, éléments de suspension réglables)
• Fixation: plaques usinées en aluminium, fixation mécanique des lames à la structure
• Géométrie: ondulations personnalisables (rayons de courbure, hauteurs, formes d’onde)
• Options de design: variations de dimensions des lames, espacement et agencements pour compositions uniques
• Performance acoustique: géométrie variable favorisant la diffusion sonore
• Sécurité incendie: traitements ignifuges possibles jusqu’à B-s1,d0 (EN 13501-1)
• Soutenabilité: possibilité d’utilisation de bambou certifié FSC®, contribution aux certifications LEED/BREEAM
• Propriétés physiques: grande résistance à la flexion, faible dilatation dimensionnelle liée à l’humidité
• Installation: modules à lames conçus pour s’adapter aux géométries courbes, contrôle précis des tolérances pour durabilité
