Brise-soleil en bois GUBI-VFOLDING

aluminiumen acier inoxydableoutdoor

Product overview
GUBI-vFOLDING is a vertical folding lattice designed as a solar control system for façades. It is a recently patented solution conceived to regulate natural lighting and ventilation through the automated vertical movement of wooden slats. The system combines functionality, sustainability and aesthetic integration in architectural enclosures.

Design and technology
GUBI-vFOLDING incorporates a fully concealed motorised mechanism that drives the vertical folding of two panels, allowing multiple opening positions. The frames are manufactured in aluminium and connected by stainless steel hinges. Horizontal and vertical reinforcements are included within the frames and side guides are provided with a multi-point opening fixing to ensure stability and durability.

Materials and cladding options
The lattice is typically specified with horizontal wooden slats as the primary cladding, although the system is versatile: different profiles, finishes, distributions of slats and panels can be applied to adapt the appearance to varied architectural styles. The folding of the frames to the outside enables the application of diverse slat and panel configurations in the sections.

Versatility and installation
The GUBI-vFOLDING system can be integrated with different structural anchoring solutions. Side guides can be embedded in the main building structure (for example in H-section pillars forming a continuous niche) or adapted to alternative supports; the guides are engineered with sufficient support capacity for various installations. The system has been developed, prototyped and tested in workshop environments.

Sustainability and energy efficiency
Using timber for the louvres positions the system as an eco-efficient solution: wood is a renewable material with a low environmental impact and contributes to the building's energy efficiency. By precisely regulating solar entry, the lattice reduces the need for artificial lighting and helps lower operational energy consumption.

Applications and examples

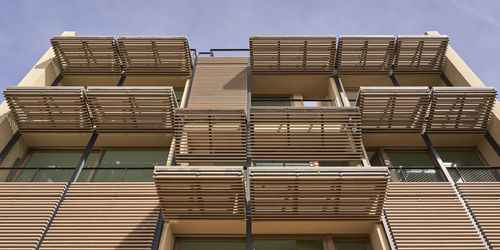

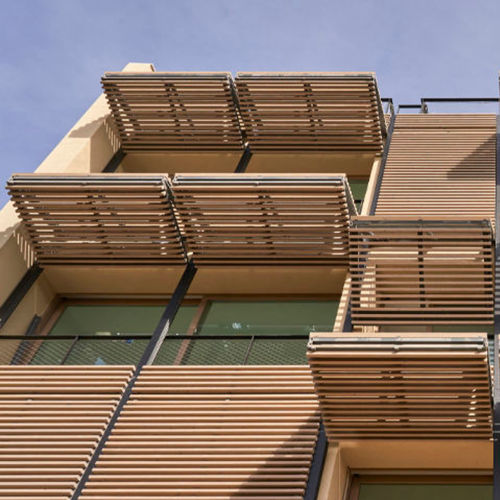

GUBI-vFOLDING is suitable for residential, commercial and cultural buildings where natural ventilation, sun control and façade aesthetics are priorities. An implemented example is the Parallel Facade project in La Bonanova, Palma de Mallorca, developed with the OHLAB studio. The solution has been prototyped and tested in workshop conditions prior to installation.

caractéristiques / spécifications techniques

• Commercial name: GUBI-vFOLDING
• Product type: Motorised vertical folding lattice / solar control system for façades
• Primary cladding: Timber louvres (horizontal slats commonly used)
• Frame material: Aluminium
• Hinges: Stainless steel
• Drive: Concealed motorised system for vertical folding of two panels
• Frame reinforcements: Horizontal and vertical reinforcements integrated into frames
• Guides: Side guides with multi-point opening fixing; adaptable anchoring solutions
• Folding direction: Frames fold outwards, allowing different slat/panel configurations
• Sustainability: Timber louvres for low environmental impact and improved energy efficiency
• Development: Prototyping and workshop testing carried out
