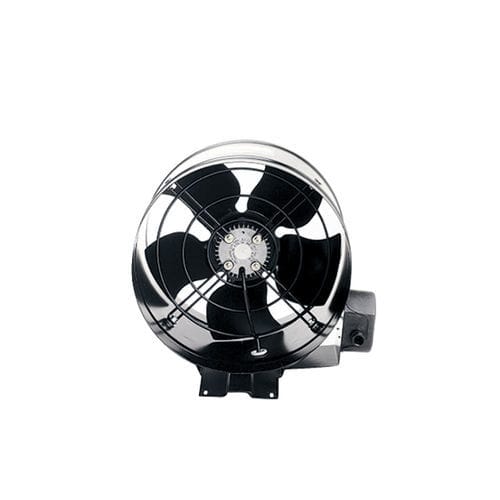

Ventilateur axial TRB SERIES

gainableprofessionneld'intérieur

Extraction or insufflation Flush mounting or on the wall Application Extraction or insufflation. To be integrated into low pressure loss networks. Construction Steel ferrule protected by black polyester paint. Wall version equipped with a support foot welded to the ferrule. Axial fan in direct coupling with the motor. TRB wall version, air direction B: Propeller / motor, external terminal box, right or left fixing on support foot. TREB flush-mounted version, air direction A: Motor / propeller, terminal box on the motor and cable gland on the ferrule. Motorization AC motor with external rotor, 1 speed single phase 230V, 50Hz, 2 or 4 poles, IP44, class F. Integrated thermal protection with automatic reset.
