Système de rails AI 72

Présentation

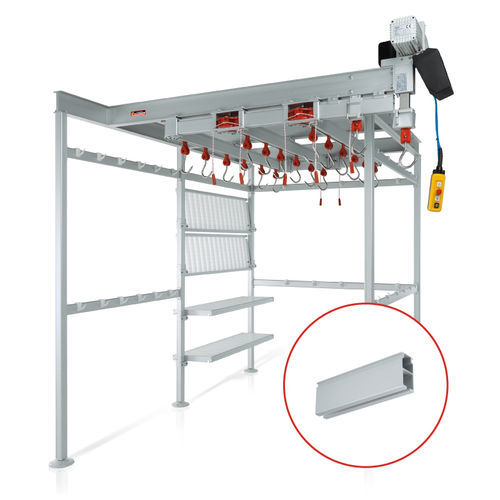

The image shows an example of a self-supporting meat rail system. To facilitate the lifting of quarters or half-carcasses of meat, a hoist has been incorporated into the structure within the loading area. This hoist comes in two versions with capacities of 200 kg and 350 kg. The photo highlights the specific section of the 100×50 mm rail characterizing the “AI 72” model.

Component Gallery (extraits)

• Putrelle: three different beam heights are available to optimize load capacities and provide a cost-effective solution.
• Three-way switch (scambio a 3 vie): highly durable and rust-free.
• Four-way switch (scambio a 4 vie): allows the hook to roll quickly and smoothly in all directions.
• Sliding hook (gancio scorrevole): hooks certified to have a load capacity of 300 kg.
• Corner spacers (distanziatori ad angolo): used to stabilize the structure without drilling into cold room panels.
• Adapted foldaway hooks (aggancio a comparsa): made from aluminum, ensuring rigidity and no plastic components.
• Hook block with collar (collarino blocca gancio): useful for stopping the hook at a specific point along its path.

Applicable accessories

• Scales: electronic scale designed for weighing meat directly on the rail; the load cell can be integrated into the rail. Available with various indicators, including watertight models suitable for cold rooms. Optional accessories like printers are available.
• Weighing section detail: integrated load cell within the rail, can be supplied with or without the indicator.
• Standard indicator: IP 54 protection rating, available with adjustable bracket and multilingual display.

Hoists

• Hoist – head installation: equipped with automatic hook insertion device preventing hook fall during hoist operation. Available in 200 kg and 350 kg capacities; typically used in the loading area at the beginning of the rail path.
• Hoist – line installation: the "line" version is installed at intermediate points along the rail (e.g. near work tables).

Other accessories and devices

• Foldable shelves: useful for hygienic storage of crates/trays; removable slats and dishwasher-safe components; easily foldable when not in use.
• Trolleys to carry quarters: designed to transport quarters from loading to cold rooms with secured direct insertion into the rail; custom-made and available with a food-grade plastic cover on request.
• Foldable rail device: useful in loading area to approach trucks when standard rail passage through doors is not possible.
• Fire-door device: designed for sliding doors without the holing for rail passage.
• Electric entrainer: designed to overcome slopes and height differences; powered by electric motor with chain transmission; can be made with fixed 30° inclination and is available in various lengths.

Documents & media

• Operating example (video)
• Installation video (video)
• Product leaflet (PDF)
• Meat rail quotation form (PDF)

Caractéristiques / spécifications techniques

• Model: AI 72
• Rail profile: 100 × 50 mm
• Hoist capacities available: 200 kg and 350 kg
• Hook certified load capacity: 300 kg
• Beam heights: three different beam heights available to optimize load capacity
• Switches: three-way and four-way switches for directional rolling of hooks
• Integrated weighing option: load cell can be integrated into the rail; weighing section available with or without indicator
• Indicators: waterproof indicator option IP 66 (stainless steel) and standard indicator IP 54
• Electric entrainer: chain transmission, fixed 30° inclination option, available in various lengths
• Foldable shelves: removable slats, dishwasher-safe
• Trolleys: custom-made, direct insertion into rail, optional food-grade plastic cover
